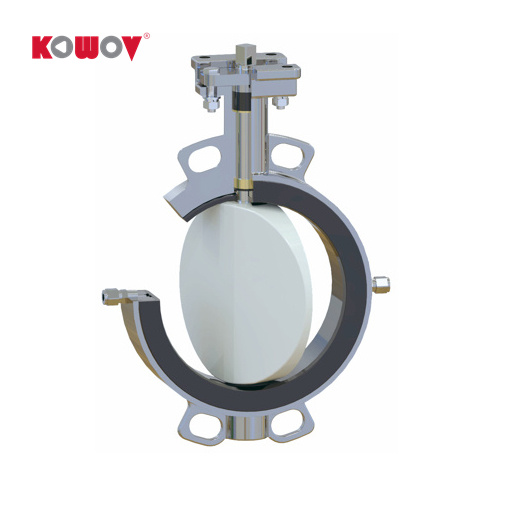

FIBV Ceramic Inflatable Butterfly Valve
Design and construction
No rotational wear between the ceramic disc and the rubber valve seat.
Pneumatic-driven, with low torque requirements and lightweight accessories for easy maintenance.
Ceramic disc is highly wear-resistant, corrosion-resistant, and non-polluting.
Operating conditions
Suitable for gas-solid particle media where high sealing performance and cleanliness are critical.
Maximum Temperature: 180 °C
Maximum Pressure: 1.6 MPa
Size Range: DN25–250 (1"–12")
Sealing Class: ≥ IV
Design and performance
Reliable sealing under particle-rich and clean operation requirements.
Easy maintenance with rapid seat replacement and low actuation torque.
Technical data
| Item | Y-ZrO Y-TZP | Mg-ZrO₂ M-PSZ | 90 Al₂O₃ | 95 Al₂O₃ | 99 Al₂O₃ | Si₃N₄ | SiC | Common ceramics | Carbide alloy | 45# Steel |
|
Density g/cm³ |
6.0~6.05 | 5.72~5.74 | 3.45~3.55 | 3.6~3.75 | 3.9~3.95 | 3.2~3.33 | 3.15~3.25 | 3.0~3.5 | 14~18 | 7.8 |
|
Hardness HRA/C |
87 | 85 | 90 | 90 | 92 | 92 | 94 | 50~60 | 70 | 36 |
|
Flexural Strength MPa |
1150 | 900 | 350 | 370 | 450 | 1200 | 470 | 20~50 | 2000 | 804 |
|
Fracture Toughness (KIC) MPa√m |
10~12 | 13~15 | 3.4 | 3.6 | 4.5 | 7 | 4 | -- | 20 | 101 |
|
Compressive Strength MPa |
2000 | 1800 | 1700 | 2000 | 2200 | 2800 | -- | -- | 4000 | 2000 |
|
Thermal Shock Resistance °C |
87 | 110 | -- | -- | 50 | 200 | 75 | -- | 500 | 500 |
|
Thermal Expansion Coefficient ×10⁻⁶/°C |
9.6 | 10 | 7.6 | 7.8 | 8.3 | 3.4 | 4 | -- | 7 | 12 |
|
Modulus of Elasticity GPa |
200 | 200 | 310 | 330 | 350 | 300 | 400 | -- | 600 | -- |
|
Crushing Load KN (Φ6mm) |
15 | 10 | 3.5 | 3.6 | 4 | 18 | 3.5 | -- | -- | -- |
|
Using Temperature °C |
<160 | <1000 | <1200 | <1250 | <1500 | <1500 | <1500 | -- | -- | <560 |
|
Water Absorption |
0 | 0 | 0.02% | 0.01% | 0.00% | 0 | 0.50% | 5~10% | -- | -- |
|
Corrosion Prevention |
Good | Good | Good | Good | Good | Good | Good | Flooey | Good | Flooey |
| Media | Temperature | ZrO₂ | 99.9% Al₂O₃ | SiC | Si₃N₄ | Graphite | PTFE | Fluororubber | SS304 | SS316 | HC |
| 20% HCL | 60°C | A | A | A | B | A | A | A | C | C | B |
| 20% HCL | 95°C | A | A | A | C | A | A | A | -- | -- | C |
| 90% H₂SO₄ | 60°C | A | A | A | A | A | A | A | C | C | B |
| 90% H₂SO₄ | 95°C | A | A | A | B | A | A | A | C | C | C |
| 60% H₃PO₄ | 60°C | A | A | A | C | A | A | A | C | C | A |
| 60% H₃PO₄ | 95°C | A | A | A | C | A | A | A | C | C | A |
| 10% HF | 60°C | C | B | A | A | A | A | A | C | C | B |
| 46% HF | 95°C | C | C | A | C | A | A | A | -- | -- | C |
| 60% HNO₃ | 60°C | A | A | A | C | B | A | A | A | A | C |
| 60% HNO₃ | 95°C | A | B | A | C | B | A | A | B | B | C |
| 30% NaOH | 60°C | A | B | A | B | A | A | A | A | A | A |
| 30% NaOH | 95°C | B | B | A | C | A | A | A | A | B | A |
| Core Specifications | O-type ball core | V60° ball core | V45° ball core | V30° ball core |
| DN15 | 10 | 7 | 4 | 3 |
| DN20 | 18.2 | 12 | 8 | 5 |
| DN25 | 29 | 18 | 12 | 8 |
| DN32 | 47 | 30 | 20 | 13 |
| DN40 | 73 | 46 | 31 | 21 |
| DN50 | 114 | 72 | 48 | 32 |
| DN65 | 181 | 115 | 76 | 51 |
| DN80 | 292 | 185 | 123 | 82 |
| DN100 | 456 | 289 | 192 | 128 |
| DN125 | 712 | 452 | 300 | 201 |
| DN150 | 1025 | 650 | 432 | 289 |
| DN200 | 1822 | 1156 | 769 | 514 |
Applications
- suited to handling particulate and bulk materials, including:
Cement
Silica sand
Fly ash
Ceramic powder
Carbon powder
Precious metal powders
Battery powders
Request an application review
Send the medium, temperature, pressure, nominal size, solids, actuation and current failure mode. The engineering team will review the duty before recommending a valve.
