Ceramic Valve Solutions for Pressure Relief and Venting
Reliable valve solutions for high-pressure-drop, flashing, cavitating and ash-laden service in coal gasification relief and vent systems
Pressure relief and venting systems are critical to the safe operation of coal gasification plants. During each slag-discharge cycle, the lock hopper must be depressurized from gasifier pressure to near-atmospheric pressure before the collected slag can be discharged
Coal Chemical Industry: Depressurization and Venting
A critical safety depressurization point that handles cyclic discharge under high differential pressure. It directs particle-laden gas-liquid mixtures to the vent or flare system, exposing valves to frequent high-velocity gas erosion and severe abrasive wear
Operating Conditions

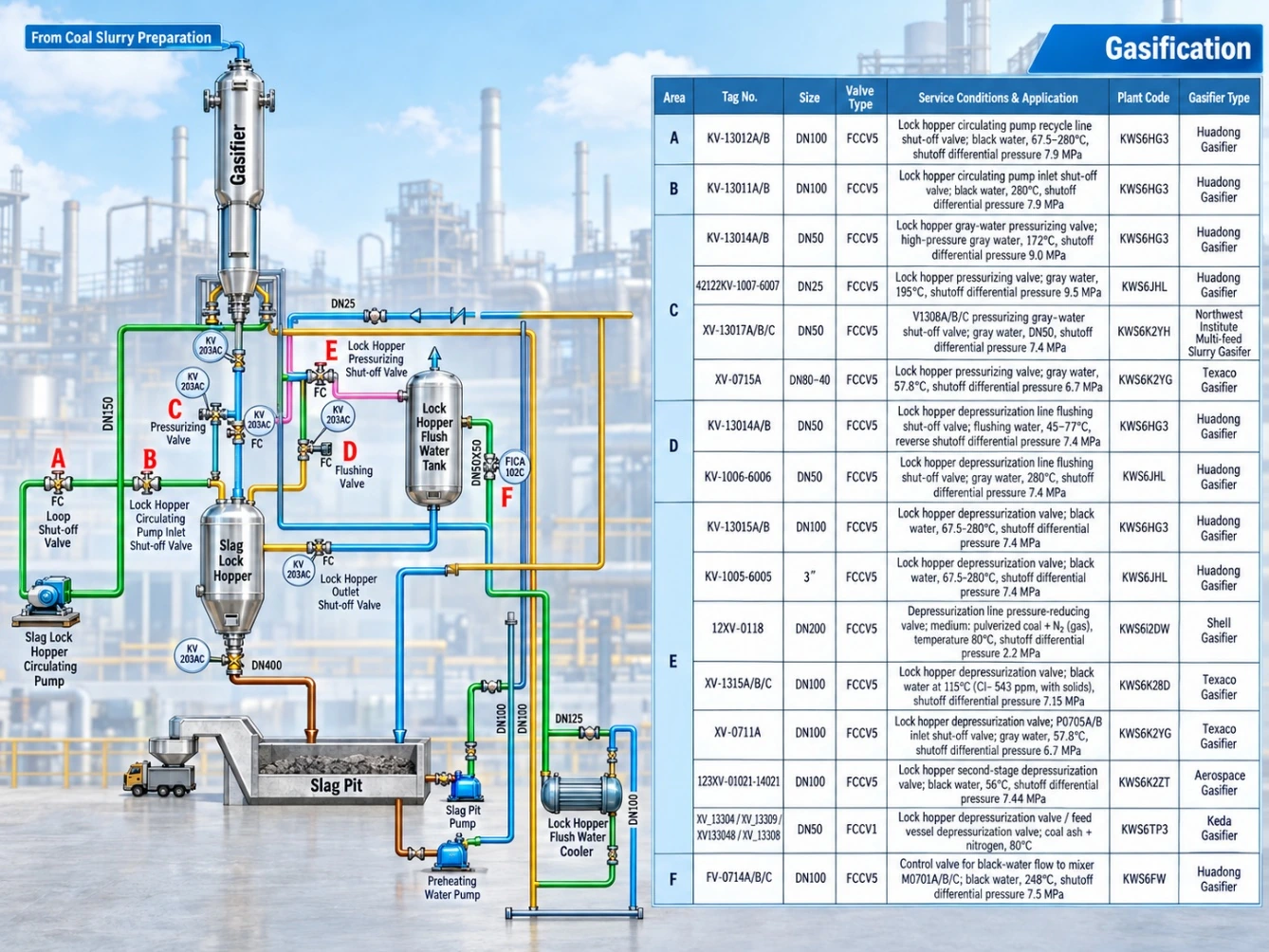

The depressurization and venting system mainly consists of the lock-hopper depressurization valve train, pressure safety valves (PSVs), vent valves and flare piping. It is a critical auxiliary system for slag discharge and plant overpressure protection
After collecting slag from the bottom of the gasifier, the lock hopper is periodically depressurized from the gasification pressure, approximately 6.5 MPa(g), to near-atmospheric pressure. During this process, high-velocity gas, liquid and entrained ash and slag particles pass through the valves, producing severe erosive multiphase flow. After depressurization, the vent valve may be opened to direct residual gas to the flare system and allow slag discharge
| Parameter | Value | Phase / Classification | Key Characteristic |
|---|---|---|---|
| Process medium | Black water and flash vapor containing ash and slag particles | Solid-gas and solid-liquid multiphase flow | Severe erosion and abrasive wear |
| Maximum pressure | Up to 150 bar | Pressure class | ASME Class 900 |
| Differential pressure | Up to 60 bar | Nominal size | DN25-DN200 |
| Operating temperature | Below 200°C | Thermal condition | No significant thermal shock |
Process-Media Characteristics
Depressurization valves operate intermittently and frequently. During each cycle, the pressure may be reduced in stages across a differential of 4-7 MPa. Black water, flash vapor and entrained ash and slag travel at extremely high velocities, causing severe erosion, scouring and wall-thickness loss in conventional valve trim
Pressure safety valves open when the system exceeds its allowable pressure, protecting the gasifier and lock hopper from overpressure. Because the entire depressurization sequence is automatically controlled, the valves must provide highly reliable operation, excellent erosion resistance and an extended service life
| Medium Property | Typical Condition |
|---|---|
| Chemical composition | Black water, flash vapor, coal particles, ash and slag |
| Corrosive components | Chloride ions and sulfur compounds |
| pH | 7-9 |
| Solids content | 1-10% |
| Maximum particle size | 300 μm |
| Particle hardness | Mohs hardness 6-7 |
Summary of Ceramic Valve Applications in Coal Chemical Processes
Severe Abrasion and Particle-Erosion Service
For abrasive media such as slag water, coal slurry and pulverized coal, valves use one-piece or segmented ceramic-lined flow passages, with all critical internal components protected by engineering ceramics. The exceptional hardness and mechanical strength of the ceramic trim resist particle impact and erosion, preventing sealing-surface wear and internal leakage
Throttling and High-Velocity Erosion Service
For black water and gray water control applications, ceramic V-port ball valves or specially designed ceramic control seats provide stable pressure reduction and precise flow regulation. The ceramic trim extends service life under high-velocity flow and helps prevent seat failure caused by cavitation and erosion
Acidic and Corrosive Service
For acidic media, acid gases and corrosive condensate, chemically stable ceramic materials can replace conventional alloy valves. This prevents premature failure and leakage caused by pitting and general corrosion while improving overall system corrosion resistance and operational safety
Frequent-Cycling Service
For lock-hopper sequence valves and other frequently operated valves, ceramic hard-seated construction provides excellent cycling-fatigue resistance. The valves maintain reliable shut-off and sealing integrity during long-term operation, substantially reducing maintenance frequency
Overall Value of Ceramic Valve Applications
These operating conditions represent the principal weaknesses of conventional metal valves in coal chemical plants and some of the most mature and widely adopted applications for ceramic valve technology
With exceptional hardness, corrosion resistance and chemical stability, ceramic valves effectively address abrasion, erosion, corrosion, jamming and sealing failures. They significantly extend valve service life and provide a reliable solution for critical coal chemical equipment requiring continuous long-term operation
Analysis of Actual Process Pain Points
Existing Valve Materials and Designs
Conventional valves generally use stainless steel or alloy-metal construction, including metal hard-seated ball valves and eccentric rotary valves. These designs cannot withstand continuous corrosion and erosion caused by highly corrosive media containing abrasive solids
Common Problems with Existing Valves
High-velocity hard particles cause severe erosion and may penetrate internal components. Damage to sealing surfaces results in internal leakage, while aggressive corrosion may damage the trim or valve body and cause external leakage. Particle accumulation in internal clearances may also cause the valve to stick or seize completely
Replacement Frequency and Service Life
Under combined erosion and corrosion, conventional metal hard-seated valves typically last only 6-12 months. At critical operating points, service life may be reduced to just 3-6 months, requiring frequent shutdowns for valve replacement
Losses Caused by Shutdowns and Maintenance
Unplanned shutdowns disrupt production and reduce plant output. Frequent valve replacement increases maintenance costs, while process-media leakage creates environmental compliance risks and potential penalties. High-pressure fluid discharge also poses serious hazards to personnel
Requirement for Long-Term, Reliable Operation
Coal chemical processes involve highly corrosive media, abrasive solid particles and frequent pressure and temperature fluctuations. As critical pipeline control components, valves must provide reliable long-term performance to prevent leakage and equipment failures, reduce unplanned shutdowns, maintain stable process parameters, lower spare-parts and maintenance costs, prevent uncontrolled discharge and material loss, and improve plant safety, environmental compliance and economic performance
Proven Applications of Ceramic Valves in Coal Chemical Plants
Gasification Unit
- Lock hopper depressurization valve
- Lock hopper pressurization valve
- Lock hopper depressurization-line flushing valve
- Lock hopper circulation-pump inlet valve
- Lock hopper circulation-pump recirculation valve
- Other severe-service valves
Coal Feeding and Conveying Unit
- Coal slurry and pulverized-coal conveying-line shut-off valves
- Pulverized-coal vent valves
- Other abrasive-media valves
Slag and Black Water Treatment Unit
- Flash drum level control valve
- Black water flow control valve at the quench-water pump outlet
- Scrubber level control valve
- Hot water tower level control valve
- Black water flow control valve at the slag-pool outlet
- Other slurry control valves
Gas Purification and Recovery Units
General-purpose process valves used in shift conversion, ammonia recovery and sulfur recovery units, including:
- Process-line isolation and throttling valves
- Condensate control valves
- Acid gas separator control valves
- Other severe-service control valves
Core Value and Advantages of Ceramic Valve Selection
Coal chemical processes involve severe abrasion, strong corrosion and high differential pressures. With a hardness of HRA 87 or above, engineering ceramic trim provides outstanding resistance to particle erosion and corrosive media. Its inorganic, non-metallic composition also delivers excellent chemical stability and durable sealing performance
Compared with conventional metal valves, ceramic valves can provide a service life 5-10 times longer, significantly reducing maintenance frequency and spare-parts costs. They are an effective upgrade for critical valve positions requiring reliable long-term operation in coal chemical plants
Why Choose Ceramic Valves?
Exceptional Abrasion and Erosion Resistance
Engineering ceramics have a hardness of HRA 87 or above, far exceeding conventional alloy steels. Ceramic valves withstand continuous high-velocity particle impact, abrasion and erosion, significantly extending service life and reducing replacement frequency
Outstanding Corrosion Resistance
Engineering ceramics are inorganic, non-metallic materials with excellent chemical stability. They resist chemical attack from aggressive process media, preventing the pitting, rusting and leakage commonly experienced with metal valves in corrosive service
Mirror-Finished Surfaces Resist Fouling and Jamming
Precision-machined ceramic flow-path surfaces have a mirror-like finish with extremely low particle adhesion. This minimizes solids buildup, scaling and crystallization, helping prevent valve sticking and seizure while reducing maintenance costs
Reliable Operation under Severe Conditions
Ceramic valves provide stable performance under high pressure, elevated temperatures and frequent cycling. Their long-term operating performance remains consistent, ensuring precise flow control and reliable shut-off for continuous plant operation
Conclusion
Ceramic valves are specifically designed to address abrasion, corrosion, fouling and jamming in coal chemical plants. By improving valve reliability at critical operating points, they support efficient long-term plant operation while significantly reducing unplanned shutdowns and maintenance costs
Case Study

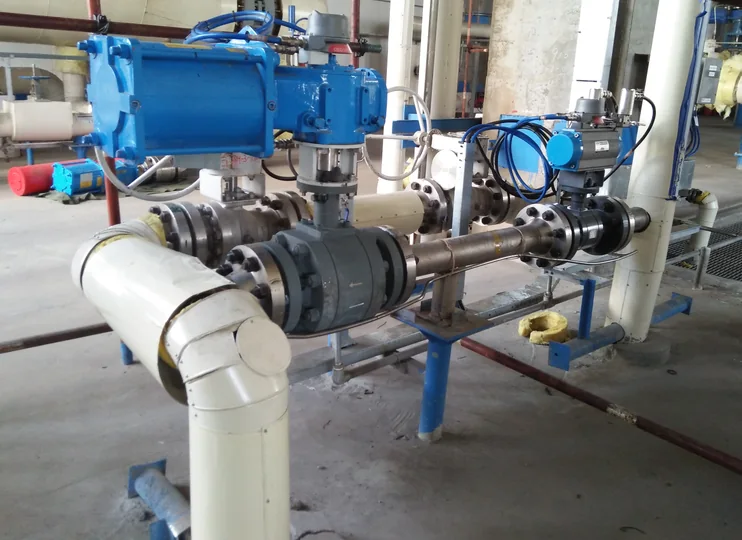

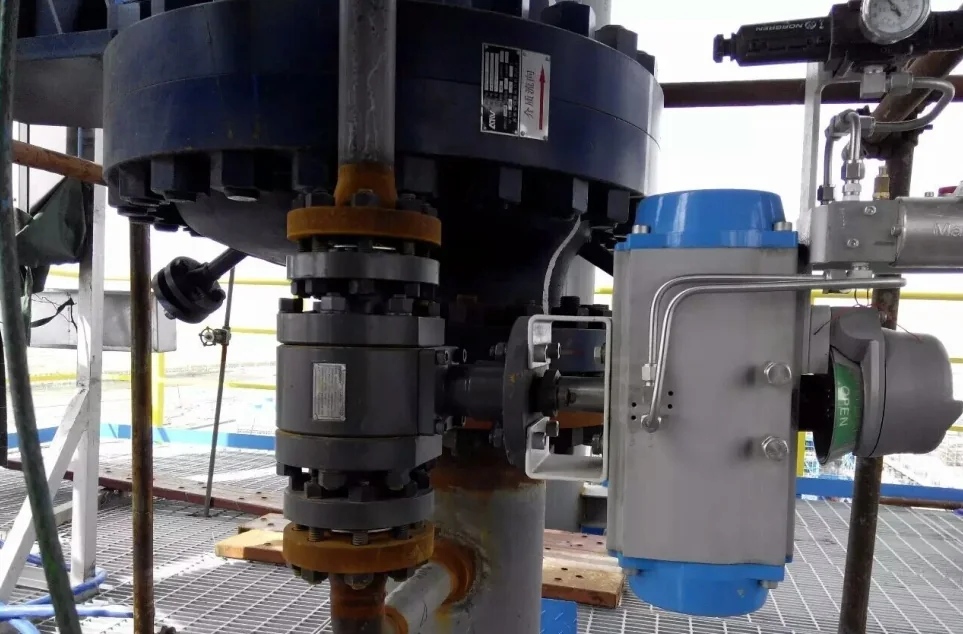

Pressure Relief & Venting: site photographs
End Users
- Shenhua Ningxia Coal Industry Group Co., Ltd., Coal-to-Liquids Branch, China, commissioned in 2018
- Zhongtian Hechuang Energy Co., Ltd., China, in service since 2019
- Inner Mongolia Boda Shidi Chemical Co., Ltd., China, commissioned in 2019
Application Background
In coal chemical slag-discharge and lock-hopper systems handling black water containing ash and slag particles, structural ceramic valve trim provides exceptional hardness, erosion resistance and corrosion resistance
The ceramic construction is well suited to high-velocity abrasive media and frequent sequence-controlled cycling. It reduces sealing-surface wear, internal leakage and unplanned maintenance while improving operational stability and extending valve service life
According to feedback from the Shenhua Ningxia coal-to-liquids project, the previously installed imported ceramic valves and domestically manufactured ceramic valves required frequent replacement, resulting in multiple replacements each year and high maintenance costs
After the valves were replaced with KOWOV ceramic valves, replacement frequency decreased significantly and operating stability improved. The solution generated cumulative cost savings of approximately RMB 26 million for the customer
Conclusion
Minimum recorded service life for ceramic control and on/off valves: ≥8 years
Commonly Used Products
FCCV5
High-Temperature, High-Pressure Ceramic Ball Valve
Developed specifically for applications involving elevated temperatures, high pressures, high-velocity flow and abrasive solid particles. It is suitable for severe erosion and corrosion under high-temperature, high-pressure and high-differential-pressure conditions
Typical applications include ASME Class 600/900 service, severe erosion, cavitation and flashing conditions
- Size range: DN25-300
FCCV4
Anti-Jet Ceramic Control Ball Valve
Designed for flow regulation or first-stage pressure reduction under high differential-pressure conditions. Its anti-jet design limits valve erosion, vibration and noise while providing resistance to erosion and cavitation
The design prevents concentrated high-velocity flow from directly impinging on the valve body at small openings
- Size range: DN25-250
