Ceramic Valve Solutions for Black Water Flashing Systems
Reliable flow and level control for high-solids black water exposed to severe pressure drop, flashing, cavitation and particle erosion
The black water flashing system is a critical part of the slag and water treatment process in a coal gasification plant. High-temperature black water is depressurized in multiple stages to release dissolved gases and steam, recover heat and reduce the temperature before clarification
Coal Chemical Industry: Black Water Flash Separation
A pressure-reduction and energy-recovery section that uses multistage flashing to separate vapor from black water. The process recovers flash vapor and reduces the load on the downstream slag-water treatment system, while exposing valves to severe cavitation and rapid pressure fluctuations
Operating Conditions
The flash separation section is a core part of the slag-water treatment system. It uses staged pressure reduction to release dissolved gases and steam from high-temperature black water. This process reduces the black-water pressure, strips acidic gases such as CO₂ and H₂S, and recovers heat

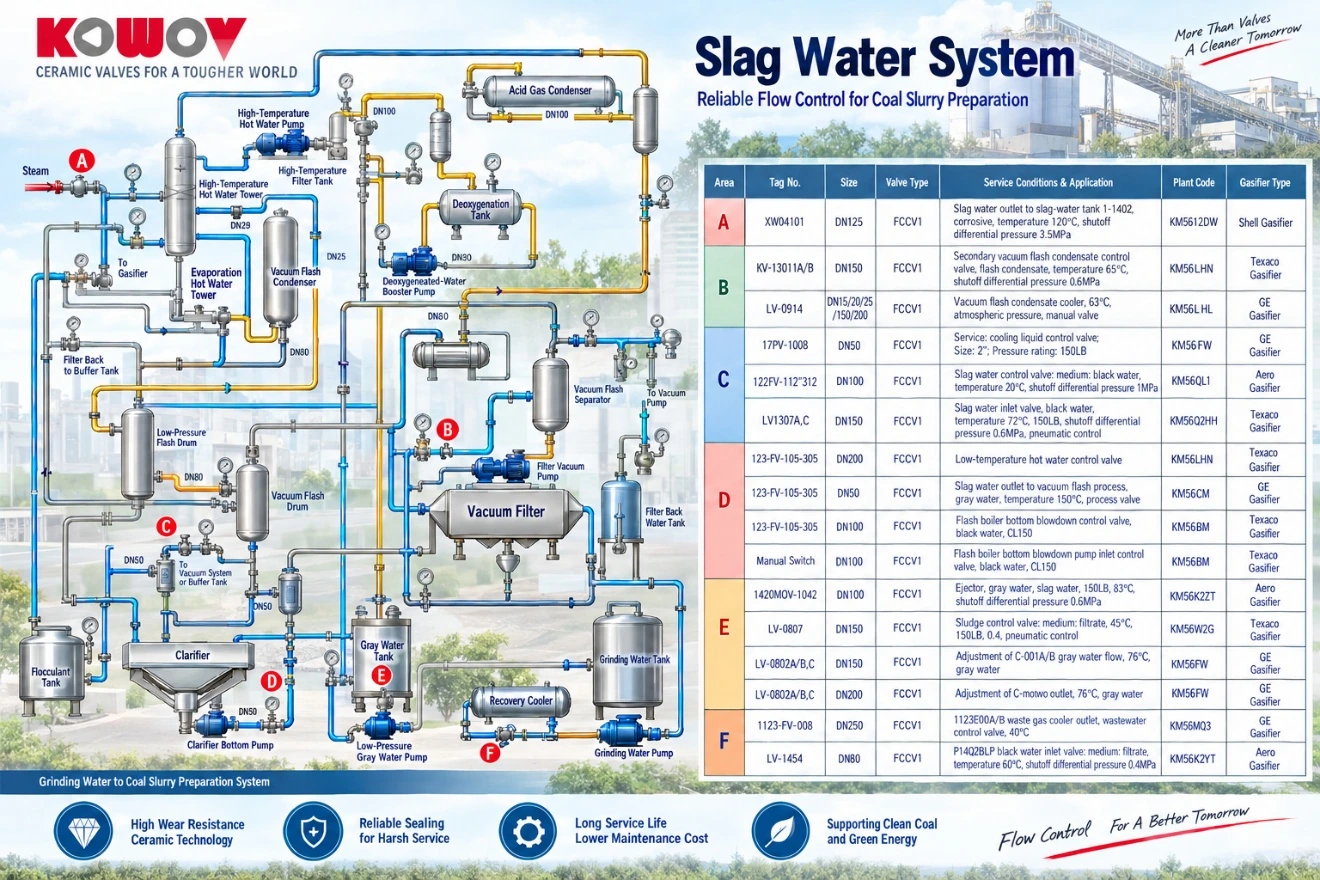

A typical three-stage flash process includes:
- High-pressure flash: Black water from the gasifier, at approximately 6.5 MPa(g) and 250°C, is reduced to an intermediate pressure of about 0.8 MPa(g) and 175°C
- Low-pressure flash: The pressure is further reduced to approximately 0.2 MPa(g), with the temperature decreasing to about 130°C
- Vacuum flash: The pressure is reduced to approximately −0.056 MPa(g), and the temperature falls to about 70-80°C, completing deep depressurization and removing most dissolved gases
After the third stage, the black water at approximately 70-80°C enters the clarification and ash-treatment system. At each stage, the incoming black water separates into flash vapor and solids-containing liquid
| Parameter | Value | Phase / Classification | Key Characteristic |
|---|---|---|---|
| Process media | Black water and gray water | Liquid-solid two-phase flow | Abrasion and corrosion |
| Operating pressure | 16-100 bar | Pressure class | ASME Class 150-600 |
| Differential pressure | Up to 20-60 bar | Nominal size | DN25-DN300 |
| Operating temperature | Below 200°C | Thermal condition | Stable operation without severe thermal shock; thermal-cycling risk during flashing, start-up, shutdown and depressurization |
Process-Media Characteristics
Black water in coal gasification contains large quantities of ash, suspended solids and trace slag particles. Flash-feed valves, level-control valves and bottom-drain valves continuously handle black water or gray water with local solids concentrations reaching 20-30%
Under high-pressure liquid-solid two-phase conditions, sudden pressure reduction accelerates the solids into a high-velocity jet. This creates severe erosion and cavitation, together with risks of sealing-surface damage, valve-seat wear and valve jamming
| Medium Property | Typical Condition |
|---|---|
| Chemical composition | Sulfates, chloride ions, black water and gray water |
| Corrosive components | Chloride ions and sulfur compounds |
| pH | 7-9 |
| Solids content | 20-30% |
| Particle size | 5-150 μm |
| Particle hardness | Mohs hardness 6-7, highly abrasive |
Summary of Ceramic Valve Applications in Coal Chemical Processes
Severe Abrasion and Particle-Erosion Service
For abrasive media such as slag water, coal slurry and pulverized coal, valves use one-piece or segmented ceramic-lined flow passages, with all critical internal components protected by engineering ceramics. The exceptional hardness and mechanical strength of ceramic trim resist particle impact and erosion, preventing sealing-surface wear and internal leakage
Throttling and High-Velocity Erosion Service
For black water and gray water control applications, ceramic V-port ball valves or specially designed ceramic control seats provide stable pressure reduction and precise flow regulation. Ceramic trim extends service life under high-velocity flow and helps prevent valve-seat failure caused by cavitation and erosion
Acidic and Corrosive Service
For acidic media, acid gases and corrosive condensate, chemically stable ceramic materials can replace conventional alloy valves. This prevents premature failure and leakage caused by pitting and general corrosion while improving overall system corrosion resistance and operational safety
Frequent-Cycling Service
For lock-hopper sequence valves and other frequently operated valves, ceramic hard-seated construction provides excellent resistance to cycling fatigue. The valves maintain reliable shut-off and sealing integrity during long-term operation, substantially reducing maintenance frequency
Overall Value of Ceramic Valve Applications
These operating conditions represent the principal weaknesses of conventional metal valves in coal chemical plants and some of the most mature applications for ceramic valve technology
With exceptional hardness, corrosion resistance and chemical stability, ceramic valves effectively address abrasion, erosion, corrosion, jamming and sealing failures. They significantly extend valve service life and provide a reliable solution for critical coal chemical equipment requiring continuous long-term operation
Analysis of Actual Process Pain Points
Existing Valve Materials and Designs
Conventional valves generally use stainless steel or alloy-metal construction, including metal hard-seated ball valves and eccentric rotary valves. These designs cannot withstand continuous corrosion and erosion caused by highly corrosive media containing abrasive solids
Common Problems with Existing Valves
High-velocity hard particles cause severe erosion and may penetrate internal components. Damage to sealing surfaces results in internal leakage, while aggressive corrosion may damage the trim or valve body and cause external leakage. Particle accumulation in internal clearances may also cause the valve to stick or seize completely
Replacement Frequency and Service Life
Under combined erosion and corrosion, conventional metal hard-seated valves typically last only 6-12 months. At critical operating points, service life may be reduced to just 3-6 months, requiring frequent shutdowns for valve replacement
Losses Caused by Shutdowns and Maintenance
Unplanned shutdowns disrupt production and reduce plant output. Frequent valve replacement increases maintenance costs, while process-media leakage creates environmental compliance risks and potential penalties. High-pressure fluid discharge also poses serious hazards to personnel
Requirement for Long-Term, Reliable Operation
Coal chemical processes involve highly corrosive media, abrasive solid particles and frequent pressure and temperature fluctuations. As critical pipeline control components, valves must provide reliable long-term performance to prevent leakage and equipment failures, reduce unplanned shutdowns, maintain stable process parameters, lower spare-parts and maintenance costs, prevent uncontrolled discharge and material loss, and improve plant safety, environmental compliance and economic performance
Proven Applications of Ceramic Valves in Coal Chemical Plants
Gasification Unit
- Lock hopper depressurization valve
- Lock hopper pressurization valve
- Lock hopper depressurization-line flushing valve
- Lock hopper circulation-pump inlet valve
- Lock hopper circulation-pump recirculation valve
- Other severe-service valves
Coal Feeding and Conveying Unit
- Coal slurry and pulverized-coal conveying-line shut-off valves
- Pulverized-coal vent valves
- Other abrasive-media valves
Slag and Black Water Treatment Unit
- Flash drum level control valve
- Black water flow control valve at the quench-water pump outlet
- Scrubber level control valve
- Hot water tower level control valve
- Black water flow control valve at the slag-pool pump outlet
- Other slurry control valves
Gas Purification and Recovery Units
General-purpose process valves used in shift conversion, ammonia recovery and sulfur recovery units, including:
- Process-line isolation and throttling valves
- Condensate control valves
- Acid gas separator control valves
- Other severe-service control valves
Core Value and Advantages of Ceramic Valve Selection
Coal chemical processes involve severe abrasion, strong corrosion and high differential pressure. With a hardness of HRA 87 or above, engineering ceramic trim provides outstanding resistance to particle erosion and corrosive media. Its inorganic, non-metallic composition also delivers excellent chemical stability and durable sealing performance
Compared with conventional metal valves, ceramic valves can provide a service life 5-10 times longer, significantly reducing maintenance frequency and spare-parts costs. They are an effective upgrade for critical valve positions requiring reliable long-term operation in coal chemical plants
Why Choose Ceramic Valves?
Exceptional Abrasion and Erosion Resistance
Engineering ceramics have a hardness of HRA 87 or above, far exceeding conventional alloy steels. Ceramic valves withstand continuous high-velocity particle impact, abrasion and erosion, significantly extending service life and reducing replacement frequency
Outstanding Corrosion Resistance
Engineering ceramics are inorganic, non-metallic materials with excellent chemical stability. They resist chemical attack from aggressive process media, preventing the pitting, rusting and leakage commonly experienced with metal valves in corrosive service
Mirror-Finished Surfaces Resist Fouling and Jamming
Precision-machined ceramic flow-path surfaces have a mirror-like finish with extremely low particle adhesion. This minimizes solids buildup, scaling and crystallization, helping prevent valve sticking and seizure while reducing maintenance costs
Reliable Operation under Severe Conditions
Ceramic valves provide stable performance under high pressure, elevated temperatures and frequent cycling. Their long-term operating performance remains consistent, ensuring precise flow control and reliable shut-off for continuous plant operation
Conclusion
Ceramic valves are specifically designed to address abrasion, corrosion, fouling and jamming in coal chemical plants. By improving valve reliability at critical operating points, they support efficient long-term plant operation while significantly reducing unplanned shutdowns and maintenance costs
Case Study
End Users
- Inner Mongolia ECO Coal Chemical Technology Co., Ltd., China, in service since 2018
- Wanhua Chemical Group Co., Ltd., China, in service since 2015
- Ningxia Hening Chemical Co., Ltd., China, in service since 2019
Application Background
Media in coal chemical flash separation sections contain fine ash, suspended solids and trace slag particles. These media readily cause scaling and severe erosion
The original metal valves were exposed to high-differential-pressure throttling, flashing, multiphase gas-liquid-solid erosion and deposit buildup. They typically required removal for maintenance or replacement after approximately six months, resulting in high overall operating costs
Under severe black water and gray water flashing conditions, KOWOV ceramic valves provide better resistance than conventional metal valves to high-differential-pressure throttling, flashing, cavitation, erosion and scaling. They also provide more stable flow regulation and sealing performance
The ceramic valves help reduce trim sticking, internal leakage and flow deviation while maintaining stable liquid-level and flow-control parameters. This supports smooth system operation and generates estimated annual savings of approximately RMB 1.5 million
Conclusion
Minimum recorded service life for ceramic control valves: ≥6 years

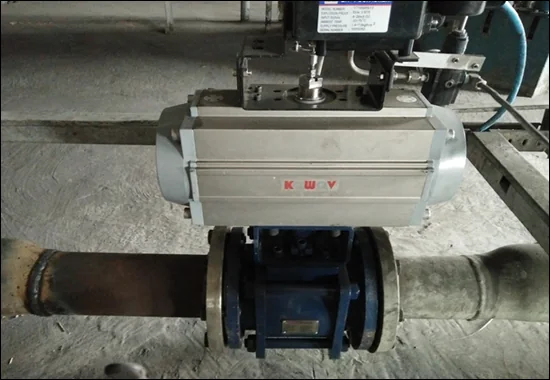

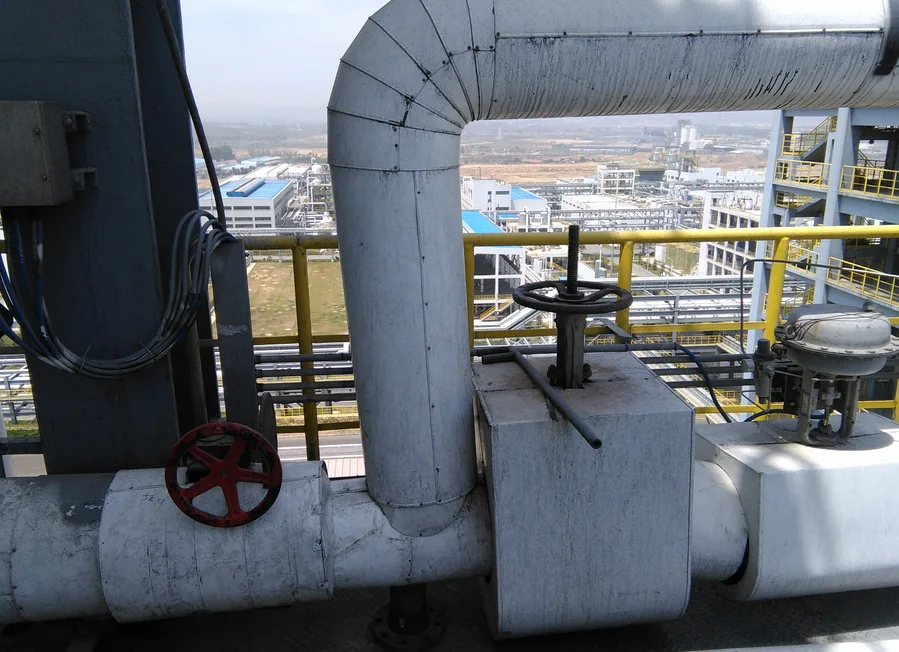

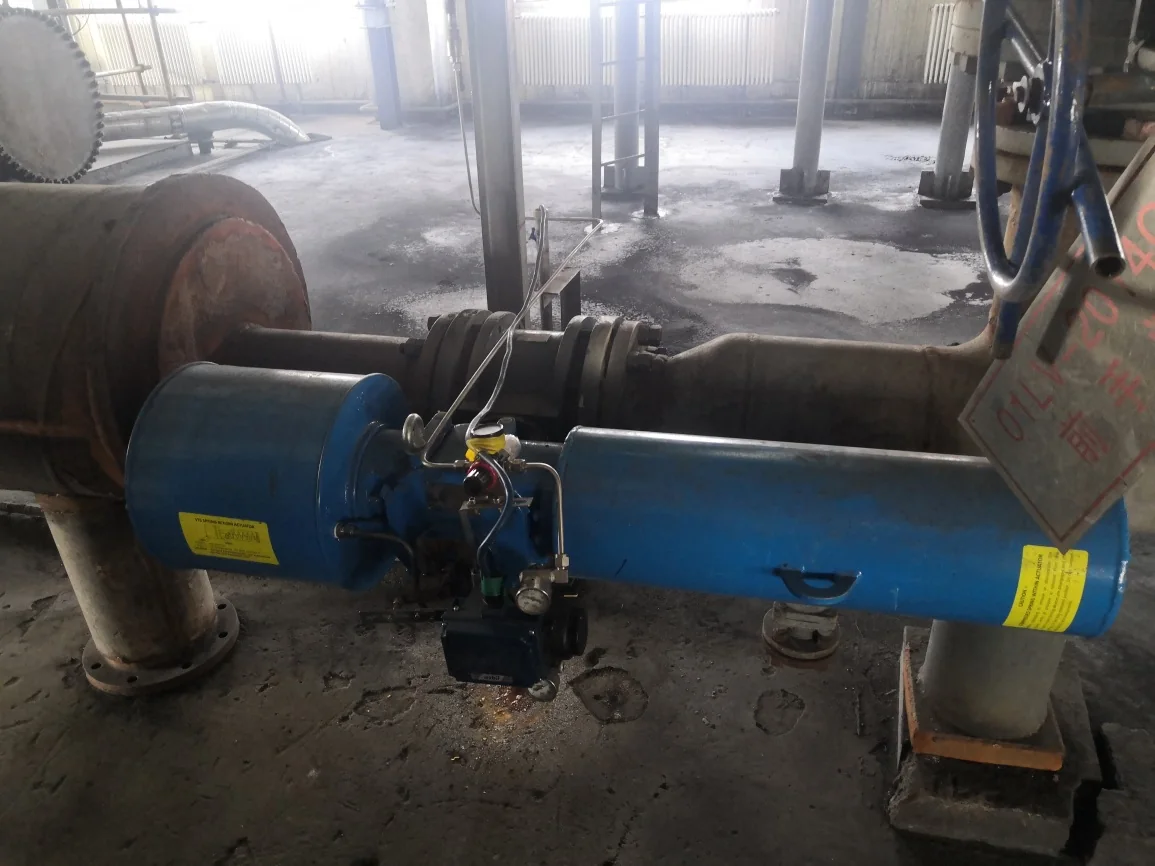

Black Water Flashing: site photographs
Commonly Used Products
FCCV1
Standard Ceramic Ball Valve
A proven, versatile ceramic ball valve with a classic design, suitable for both on/off and flow-control service. It can be used in most applications with operating temperatures up to 180°C and pressures up to 5.0 MPa, and is particularly effective for corrosive media containing abrasive solids
- Size range: DN15-250 (½″-10″)
- Shut-off class: Class IV or higher
FCCV4
Anti-Jet Ceramic Control Ball Valve
Designed for flow control or first-stage pressure reduction under high differential-pressure conditions. Its anti-jet design reduces erosion, vibration and noise while meeting the erosion- and cavitation-resistance requirements of severe-service media. It also prevents concentrated high-velocity flow from impinging directly on the valve body at small openings
- Size range: DN25-250
FCCV5
High-Temperature, High-Pressure Ceramic Ball Valve
Developed for applications involving elevated temperatures, high pressures, abrasive solid particles and high flow velocities. It is suitable for severe erosion and corrosion under high-temperature, high-pressure and high-differential-pressure conditions
Typical applications include ASME Class 600/900 service, severe erosion, cavitation and flashing conditions
- Size range: DN25-300
FCRV
Ceramic C-Ball Valve
The valve features a special C-shaped design. Its ball consists of a C-shaped metal support and a one-piece ceramic ball segment mechanically connected and securely embedded together. The ceramic segment protects the metal support from direct erosion by the process medium
The concentric design keeps the ceramic ball segment in continuous contact with the seat during operation, allowing it to scrape away deposits adhering to the sealing surfaces and maintain reliable shut-off performance. It is particularly suitable for media prone to crystallization, scaling, agglomeration, high solids loading and valve jamming. Its cavity-free design minimizes material accumulation inside the valve
- Size range: DN50-400
FCSV
Ceramic Slide Gate Valve
The valve disc moves vertically along the seat and forms a flat seal around the edge of the flow passage, minimizing erosion of the sealing surfaces. Its straight-through flow path has no sharp bends or stagnation zones, substantially reducing flow resistance and erosion
The ceramic disc is securely embedded in a metal carrier to prevent ceramic fracture if the valve becomes jammed. A T-slot connection between the metal carrier and valve stem keeps the disc in a floating position, improving sealing contact and shut-off reliability
- Size range: DN50-400
FERV
Ceramic Eccentric Rotary Valve
This valve features an eccentric rotary design with a metal support securely fitted with a one-piece ceramic ball segment and a fully ceramic-lined flow passage. It offers low operating torque, a streamlined flow path and high rangeability
Suitable for temperatures from −40°C to 456°C, it is particularly effective for viscous media and applications prone to clogging or valve seizure
- Size range: DN25-400
