Ceramic Valve Solutions for Slag and Gray Water Recirculation
Reliable flow, level and isolation control for abrasive, chloride-containing black water, gray water and fine slag slurry
The slag and gray water recirculation system treats solids-laden black water discharged from the gasifier quench chamber, Venturi scrubber and scrubber tower
Coal Chemical Industry: Slag-Water Circulation
The black water recycling unit handles the settling, clarification and recirculation of high-temperature, high-solids slag water. It supplies recycled process water to the gasification unit while exposing valves to severe particle erosion and chloride-induced corrosion
Operating Conditions

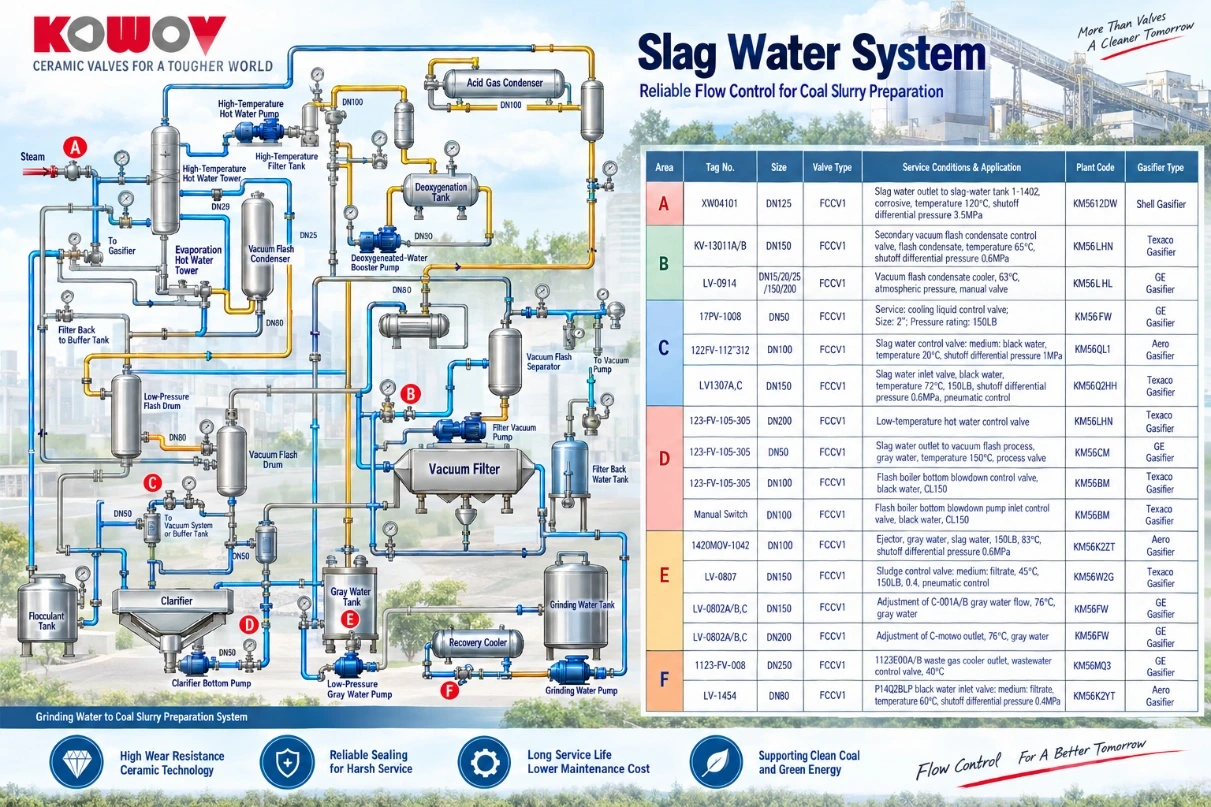

The slag-water circulation section treats high-temperature, ash-laden black water discharged from the gasifier quench chamber, Venturi scrubber and scrubber tower bottom. Its functions include gray-water clarification, fine-slag removal and process-water recycling
After depressurization, the high-temperature black water enters the slag-water system and undergoes gravity separation in a clarifier or settling tank. The settled fine slag is dewatered by a vacuum or filter press and removed as filter cake. The clarified supernatant flows into the gray-water tank and is repressurized by the gray-water pump for reuse in the gasifier quench loop, Venturi scrubber and lock-hopper flushing system. A small portion is discharged to the biochemical treatment unit to control salt accumulation
| Parameter | Value | Classification | Rating / Characteristic |
|---|---|---|---|
| Process medium | Black water / gray water | Liquid-solid two-phase | Abrasive and corrosive |
| Operating pressure | 16-100 bar | ASME pressure class | Class 150-600 |
| Differential pressure | ≤41-58 bar | Nominal size | DN25-300 |
| Temperature | <260°C | Thermal behavior | No thermal shock |
Medium Characteristics
This service involves highly abrasive and strongly corrosive black/gray water containing 1-10% solids. The slag particles have a Mohs hardness of 6-7 and a maximum size of approximately 300 μm. Chlorides and sulfides further intensify corrosion
Pumps, valves and piping are therefore exposed to the combined effects of high-velocity particle erosion and wet acidic corrosion. Gray-water pump discharge valves, clarifier-bottom drain valves and filter-cake discharge valves are particularly susceptible to severe wear and are frequent sources of auxiliary-system failures in coal gasification plants
| Property | Specification |
|---|---|
| Chemical composition | Chloride ions, black/gray water |
| Corrosive constituents | Chloride ions and sulfides |
| pH | 7-9 |
| Solids content | 1-10% |
| Particle size | ≤300 μm |
| Particle hardness | Mohs 6-7, highly abrasive |
Summary of Ceramic Valve Applications in Coal Chemical Processes
Severe Abrasion and Particle Erosion
For media such as slag water, coal slurry and pulverized coal, valves with an integral ceramic flow path or fully ceramic trim are recommended. The exceptional hardness and mechanical strength of engineered ceramics provide excellent resistance to high-velocity particle erosion, prevent sealing-surface wear and internal leakage, and overcome the short service life of conventional metal valves
Throttling and High-Velocity Erosion
For black-water and gray-water control applications, ceramic V-ball valves or specially designed ceramic-seated control valves are recommended. These designs withstand the high-velocity erosion caused by throttling pressure drops while maintaining control accuracy and extending service life, avoiding premature failure of the valve trim and seat
Acidic and Corrosive Service
For acidic water, acidic gases and ammonia-containing condensate, ceramic materials provide a chemically inert alternative to expensive alloy valves. They fundamentally eliminate valve failure and leakage caused by corrosion, improving system durability and operational safety
Frequent Cycling Service
For frequently operated valves such as lock-hopper sequence-control valves, ceramic hard-sealing structures provide outstanding resistance to cycling fatigue and particle erosion. This ensures reliable sequence-control operation and substantially reduces inspection and maintenance frequency
Overall Value of Ceramic Valves
These operating conditions represent the principal failure modes of conventional metal valves in coal chemical plants and the most established application areas for ceramic valve technology. With their exceptional hardness, corrosion resistance and chemical inertness, ceramic valves effectively address abrasion, corrosion and short service life. They significantly reduce inspection frequency and lifecycle maintenance costs, making them a critical equipment choice for the safe, stable and long-term operation of coal chemical plants
Practical Analysis of Process Challenges
Materials and Designs of Existing Valves
Conventional valves typically use stainless steel or alloy bodies with metal hard-seated ball-valve or eccentric rotary-valve designs. These materials and structures cannot withstand continuous exposure to highly abrasive solids and strongly corrosive media
Common Problems with Existing Valves
High-velocity hard particles cause severe erosion and abrasive wear. Entrained particles score the sealing surfaces, resulting in internal leakage. Corrosive media attack valve internals or bodies, causing external leakage, while sediment accumulation in internal cavities can lead to sticking or complete valve seizure
Replacement Intervals and Service Life
Metal hard-seated valves typically last only 6-12 months in erosive and corrosive service. At critical locations, service life may be reduced to just 3-6 months, requiring frequent shutdowns for valve replacement and spare-part maintenance
Losses Caused by Shutdowns and Maintenance
Unplanned shutdowns disrupt production and reduce plant output. Frequent spare-part replacement increases maintenance costs, while media leakage creates environmental compliance risks and potential penalties. High-pressure spray leakage also presents a serious hazard to personnel
Long-Term Reliable Operation Requirements
Coal chemical media are highly corrosive and often contain abrasive solids, while system pressure and temperature fluctuate frequently. As critical pipeline-control components, valves must operate reliably over extended periods to:
- Prevent process-fluid leakage and unexpected equipment failures
- Minimize unplanned shutdowns
- Maintain stable process parameters
- Reduce spare-part consumption, hazardous maintenance work and material losses
- Prevent uncontrolled discharge
- Support continuous, safe production
- Improve both economic performance and environmental compliance outcomes
Proven Applications of Ceramic Valves in Coal Chemical Plants
Gasification Unit
- Lock-hopper depressurization valves
- Lock-hopper pressurization valves
- Lock-hopper pressure-line flushing valves
- Lock-hopper circulation-pump inlet valves
- Lock-hopper circulation-pump recirculation valves
- Other severe-service valve positions
Coal Feeding and Conveying Unit
- Coal-slurry and pulverized-coal conveying-line isolation valves
- Pulverized-coal vent valves
- Other abrasive powder-handling valve positions
Slag-Water Treatment Unit
- Flash-system liquid-level control valves
- Black-water flow-control valves at quench-water pump outlets
- Scrubber liquid-level control valves
- Hot-water-tower liquid-level control valves
- Black-water flow-control valves at slag-pool pump outlets
- Other abrasive slurry-control positions
Gas Purification and Recovery Units
- General process valves
- Process isolation and throttling valves for shift-conversion, ammonia-recovery and sulfur-recovery units
- Instrument control valves
- Non-condensable-gas control valves
- Acid-gas separation control valves
- Other corrosive-service valves
Core Value and Advantages of Ceramic Valve Selection
For the extreme abrasion, severe corrosion and high-differential-pressure conditions found in coal chemical plants, ceramic valves employ ultra-hard engineered ceramics with a hardness of HRA 87 or higher. Their inorganic, non-metallic construction provides inherent corrosion resistance while delivering excellent particle-erosion resistance and durable sealing performance
Compared with conventional metal valves, ceramic valves can extend service life by approximately 5-10 times, substantially reduce maintenance frequency and spare-parts costs, and support the long-term, stable operation of coal chemical installations. They are an optimal upgrade for critical severe-service valve positions
Why Choose Ceramic Valves?
Exceptional Abrasion and Erosion Resistance
With a Rockwell hardness of HRA 87 or higher, engineered ceramics are considerably harder than conventional alloy steels. They withstand high-velocity particle impact, abrasive wear and erosion over extended periods, significantly prolonging valve service life and reducing replacement frequency
Outstanding Corrosion Resistance
Ceramics are chemically inert inorganic, non-metallic materials. They do not react with most process-media constituents, eliminating common corrosion mechanisms such as pitting, general corrosion and erosion-corrosion that affect metal valves. This makes them particularly suitable for complex corrosive services
Mirror-Finished Surfaces for Anti-Fouling Performance
Precision finishing gives ceramic flow-path surfaces a mirror-like finish with extremely low particle adhesion. This substantially reduces the accumulation of slurry solids, scale and deposits, helping prevent valve sticking and seizure while lowering maintenance costs
Reliable Operation under Severe Conditions
Ceramic valves provide stable performance in high-pressure, high-temperature and frequent-cycling applications. Their long-term operating characteristics remain consistent, ensuring accurate control, reliable shutoff and continuous plant operation
Conclusion
Ceramic valves are specifically engineered to overcome abrasion, corrosion, scaling and valve-sticking problems in coal chemical plants. By improving valve reliability at the source, they support long-term, efficient plant operation while significantly reducing unplanned shutdowns and maintenance costs
Case Study

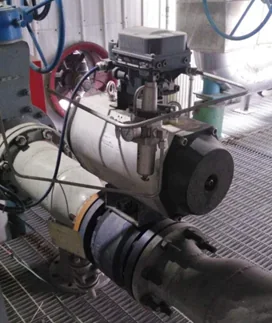

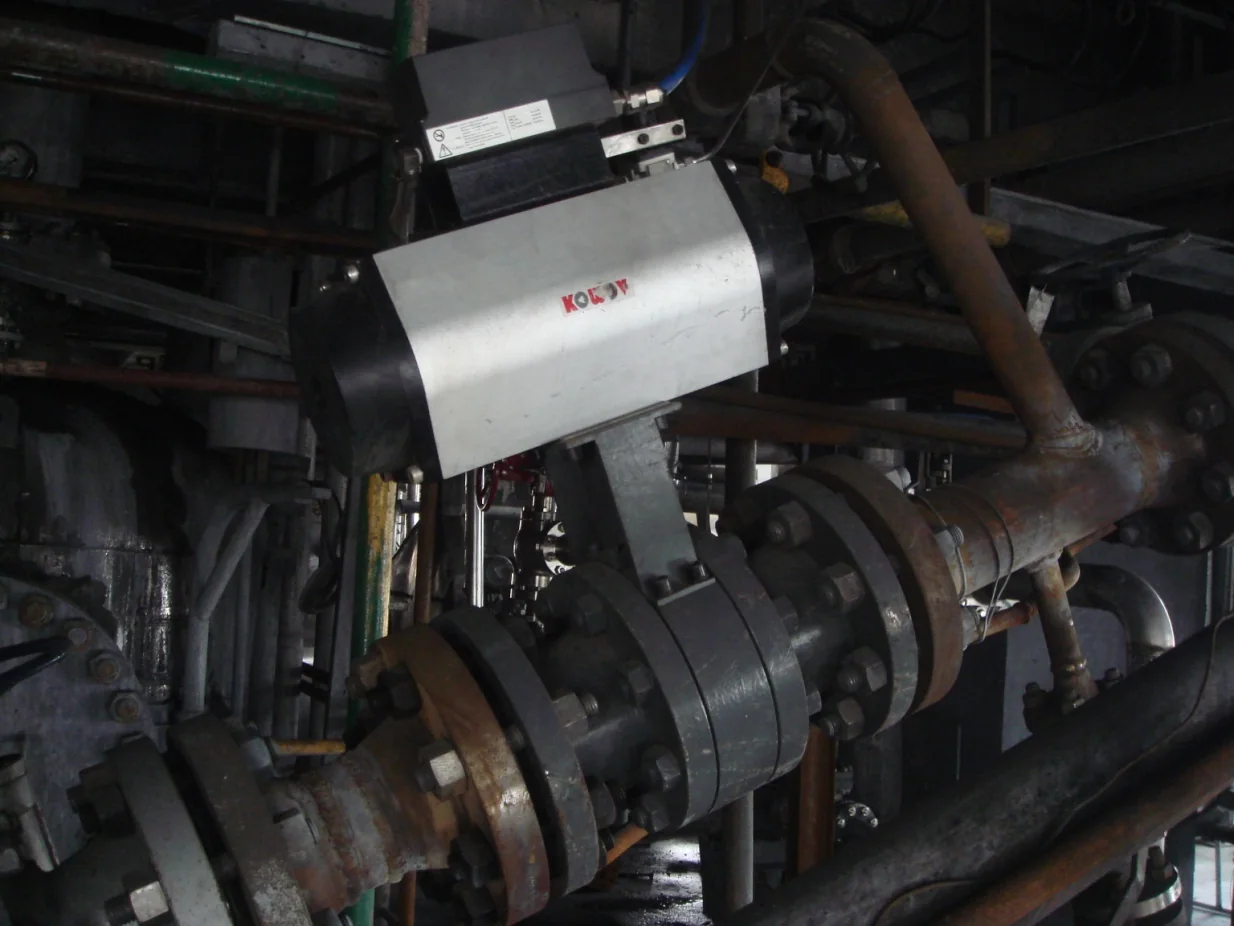

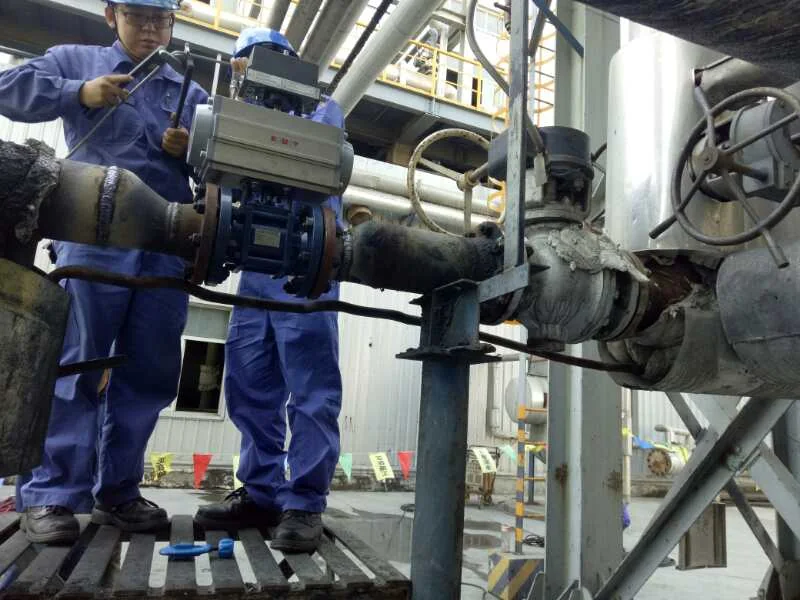

Slag & Gray Water Recirculation: site photographs
End Users
- Shenhua Ningxia Coal Industry Group Coking Co., Ltd., China, in service since 2012
- Sinochem Energy Coal Chemical Co., Ltd., China, in service since 2016
- Inner Mongolia Yitai Chemical Co., Ltd., China, in service since 2016
Application Background and Results
In the slag-water circulation section of coal chemical plants, the process medium is prone to scaling and is highly corrosive. Conventional metal valves were affected by erosion, corrosion and deposit buildup, requiring shutdown maintenance or replacement after approximately 6-8 months and resulting in high lifecycle costs
KOWOV ceramic valves provide outstanding resistance to particle erosion and corrosion under these severe operating conditions. Their stable control performance helps reduce valve sticking, internal leakage and flow-drift risks, enabling reliable control of liquid level and flow parameters and supporting the stable operation of the coal gasification system
During maintenance shutdowns, the ceramic-lined valves require only limited inspection and minimal servicing. Based on the avoided replacement and repair costs, each user or complete plant unit can save approximately RMB 1 million per maintenance cycle and about RMB 20 million over five years
Conclusion
Minimum proven service life
On/off and control valves: ≥5 years
Commonly Used Products
FCCV1
Standard Ceramic Ball Valve
A proven, versatile ceramic ball valve with a classic design, suitable for both on/off and flow-control service. It can be used in most applications with operating temperatures up to 180°C and pressures up to 5.0 MPa, and is particularly effective for corrosive media containing abrasive solids
- Size range: DN15-250 (½″-10″)
- Shut-off class: Class IV or higher
FCCV4
Anti-Jet Ceramic Control Ball Valve
Designed for flow control or first-stage pressure reduction under high differential-pressure conditions. Its anti-jet design reduces erosion, vibration and noise while meeting the erosion- and cavitation-resistance requirements of severe-service media. It also prevents concentrated high-velocity flow from impinging directly on the valve body at small openings
- Size range: DN25-250
FCCV5
High-Temperature, High-Pressure Ceramic Ball Valve
Developed for applications involving elevated temperatures, high pressures, abrasive solid particles and high flow velocities. It is suitable for severe erosion and corrosion under high-temperature, high-pressure and high-differential-pressure conditions
Typical applications include ASME Class 600/900 service, severe erosion, cavitation and flashing conditions
- Size range: DN25-300
FCRV
Ceramic C-Ball Valve
The valve features a special C-shaped design. Its ball consists of a C-shaped metal support and a one-piece ceramic ball segment mechanically connected and securely embedded together. The ceramic segment protects the metal support from direct erosion by the process medium
The concentric design keeps the ceramic ball segment in continuous contact with the seat during operation, allowing it to scrape away deposits adhering to the sealing surfaces and maintain reliable shut-off performance. It is particularly suitable for media prone to crystallization, scaling, agglomeration, high solids loading and valve jamming. Its cavity-free design minimizes material accumulation inside the valve
- Size range: DN50-400
FCSV
Ceramic Slide Gate Valve
The valve disc moves vertically along the seat and forms a flat seal around the edge of the flow passage, minimizing erosion of the sealing surfaces. Its straight-through flow path has no sharp bends or stagnation zones, substantially reducing flow resistance and erosion
The ceramic disc is securely embedded in a metal carrier to prevent ceramic fracture if the valve becomes jammed. A T-slot connection between the metal carrier and valve stem keeps the disc in a floating position, improving sealing contact and shut-off reliability
- Size range: DN50-400
FERV
Ceramic Eccentric Rotary Valve
This valve features an eccentric rotary design with a metal support securely fitted with a one-piece ceramic ball segment and a fully ceramic-lined flow passage. It offers low operating torque, a streamlined flow path and high rangeability
Suitable for temperatures from −40°C to 456°C, it is particularly effective for viscous media and applications prone to clogging or valve seizure
- Size range: DN25-400
