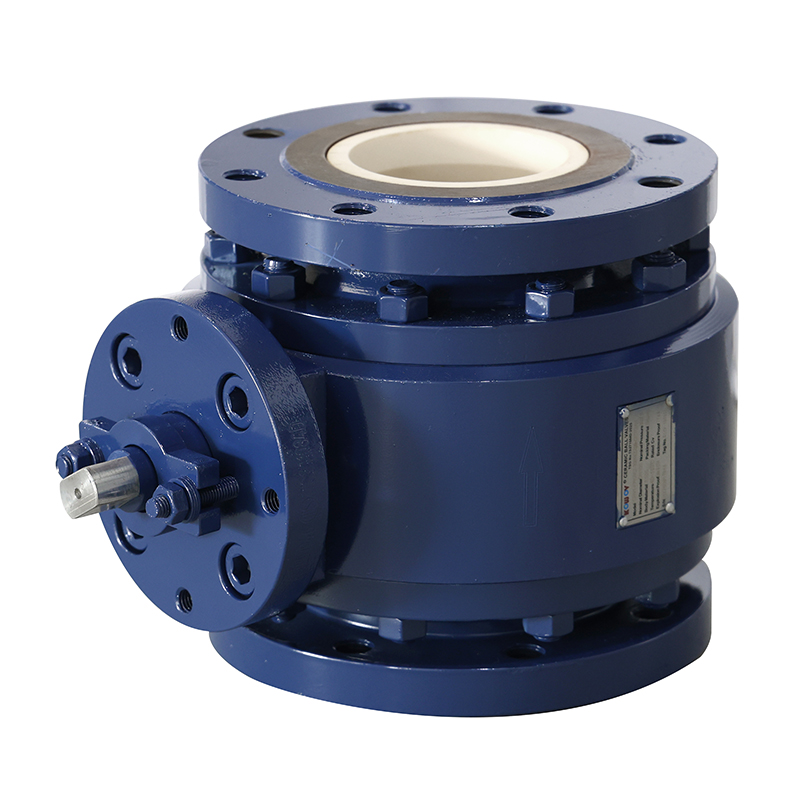

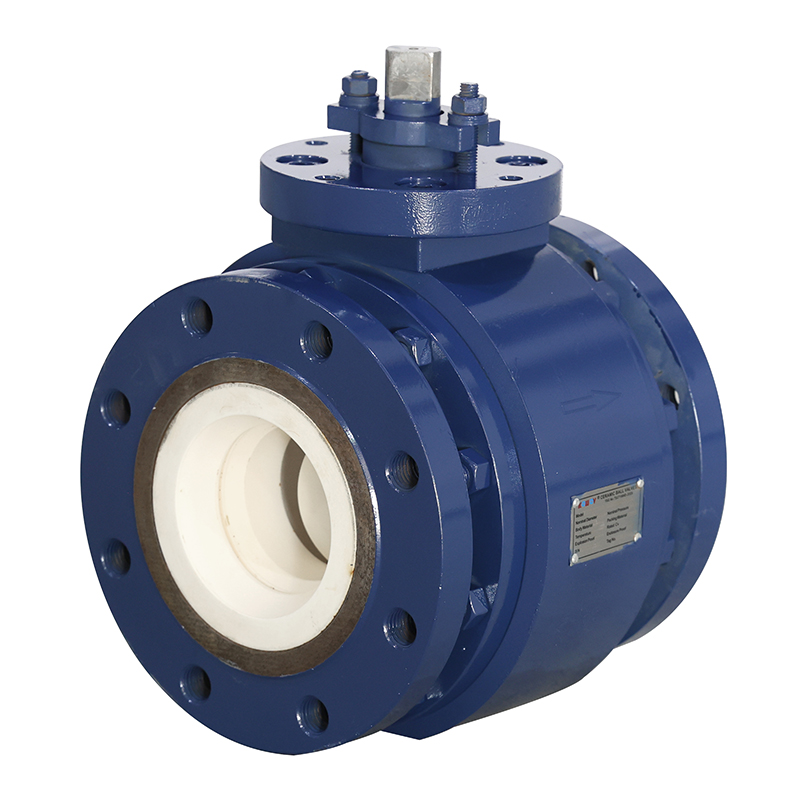

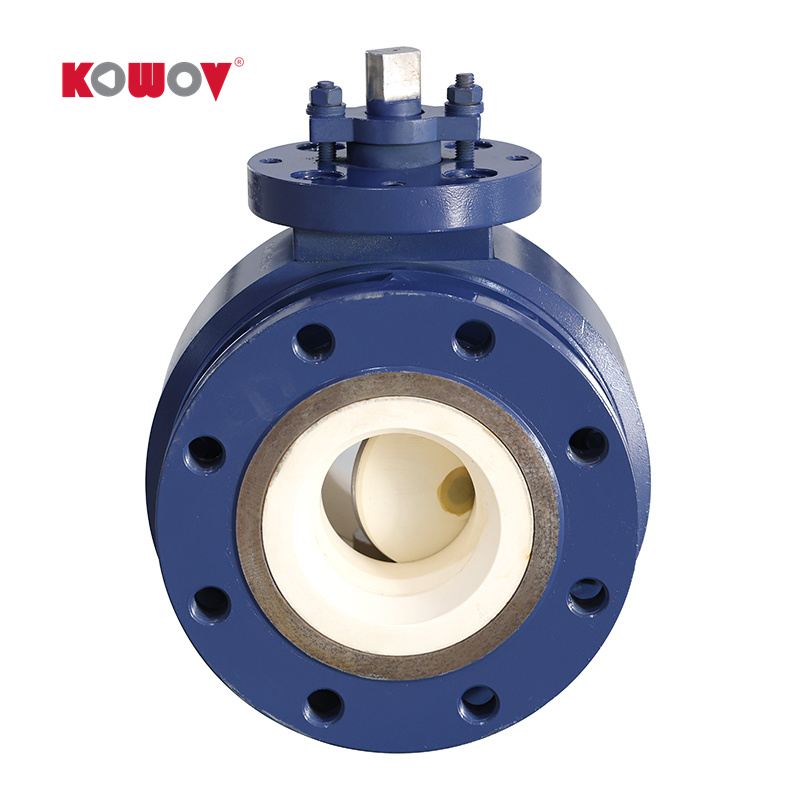

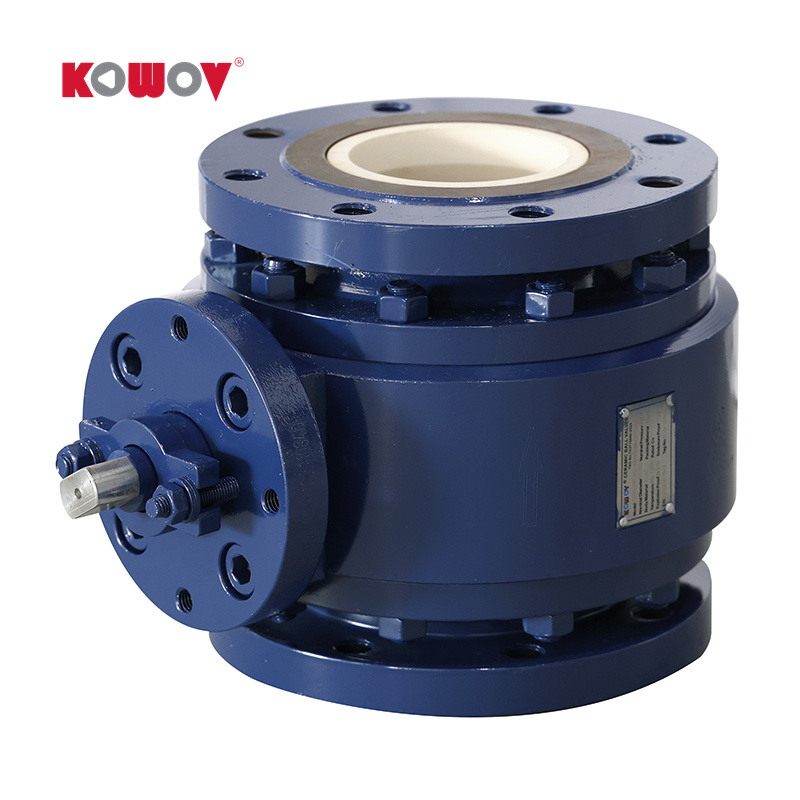

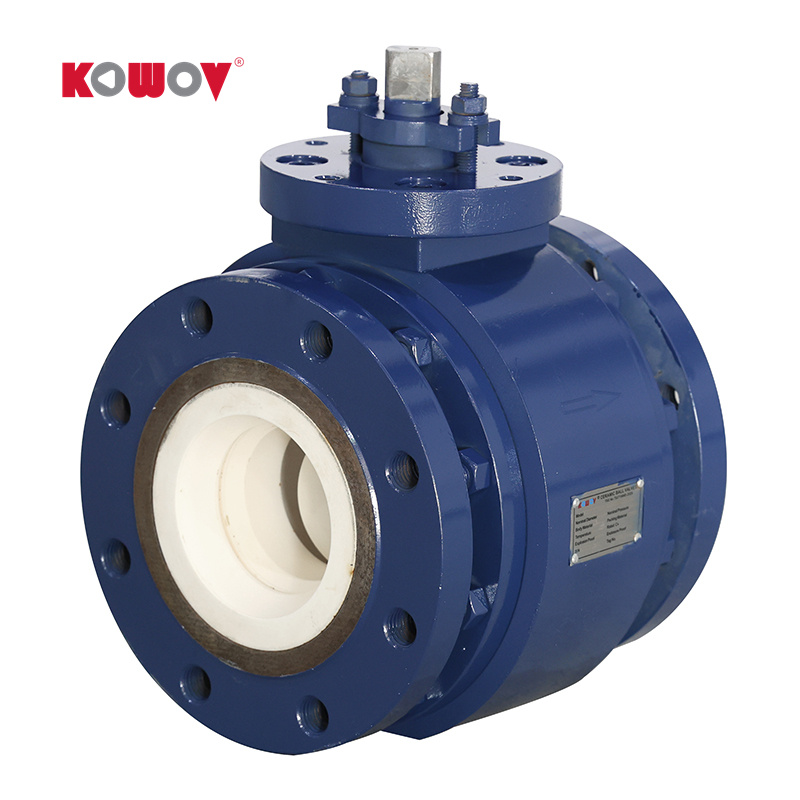

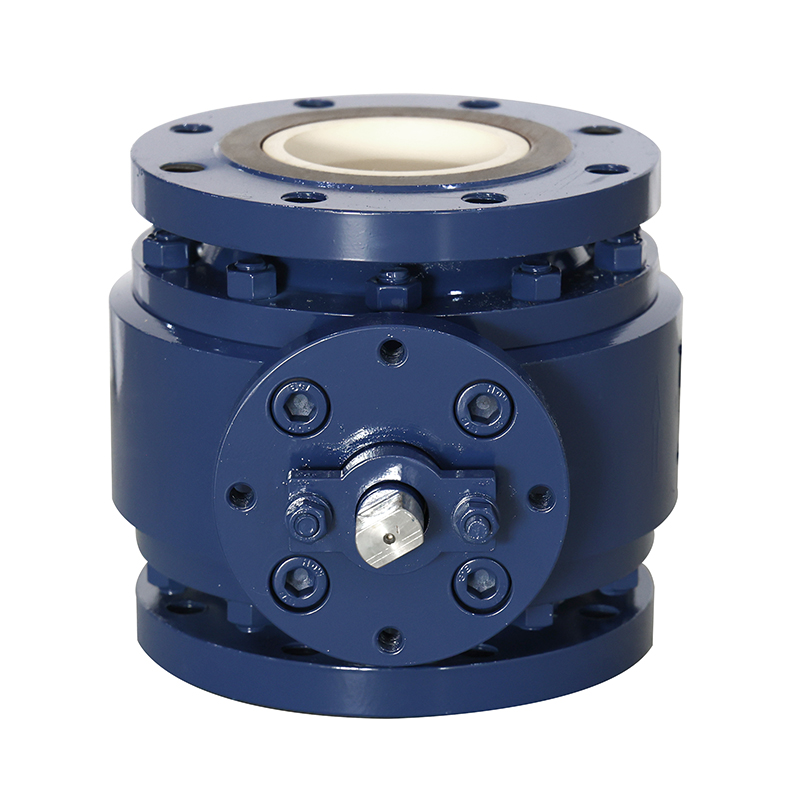

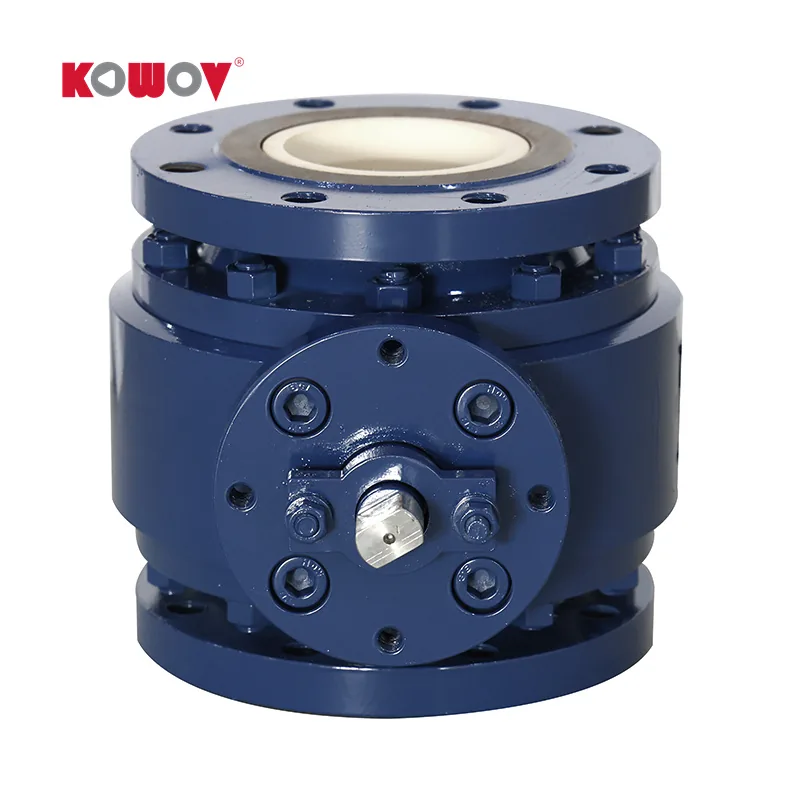

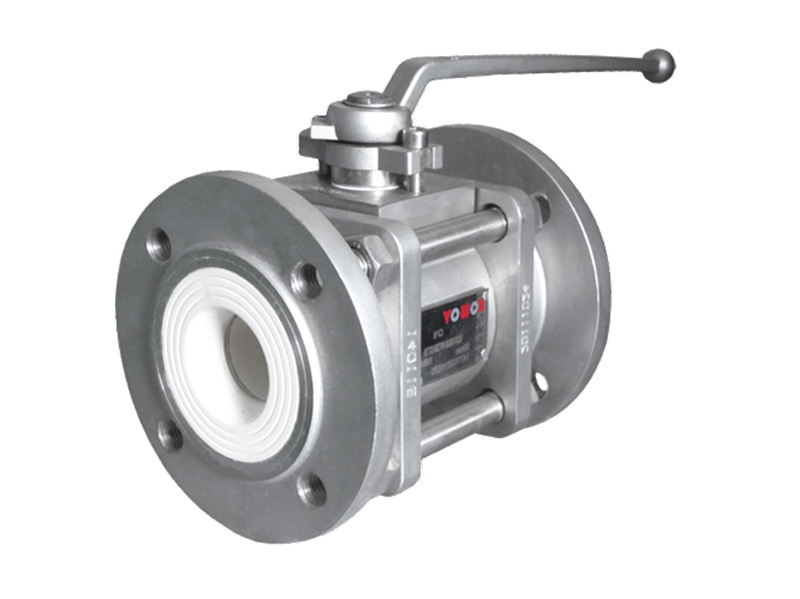

FCRV Ceramic C Rotary Valve
Product overview

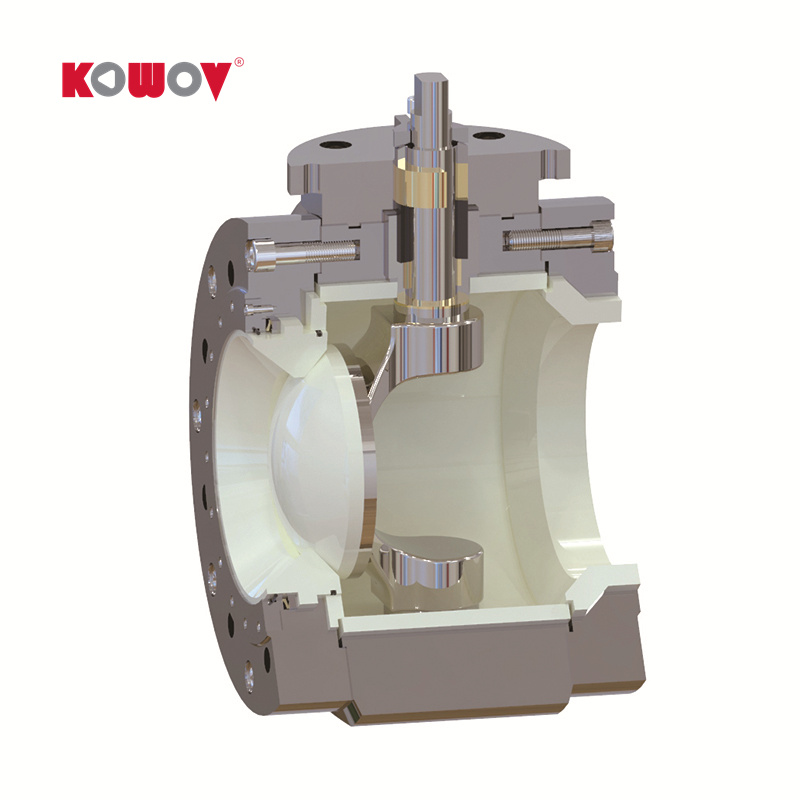

- The ball crown stays in contact with the seat and shears adhered material from the sealing pair. Ceramic self-lubrication limits sticking. Upper and lower support shafts locate the C-rotor and carry process thrust; the stem transmits opening and closing torque.
Design and construction
- Special C-type structure design with ball core mechanically connected and embedded by C-type lugs and ceramic ball crown, protecting lugs from erosion.The concentric design keeps the ceramic ball crown in contact with the seat so it can scrape adhered material from the sealing surface.C-type lugs directly bear rotational torque, suited to harsh conditions with crystallization, scaling, caking, high solid content, and clogging.Cavity-free design prevents material accumulation inside the valve.Fixed ball design prevents ball core movement under pressure, resulting in low operating torque, achieving ANSI Class VI sealing.All process-wetted flow passages are ceramic-lined.Anti-blowout stem design ensures valve safety and reliability.
Technical data
| Nominal diameter | Ball bore | Shape | DN40 (1 1/2") | DN50 (2") | DN65 (2 1/2") | DN80 (3") | DN100 (4") | DN125 (5") | DN150 (6") | DN200 (8") | DN250 (10") | DN300 (12") | DN350 (14") |
| DN50 | 2" | round | 62 | ||||||||||
| DN65 | 2 1/2" | round | 62 | 97 | |||||||||
| DN80 | 3" | round | 60 | 95 | 155 | ||||||||
| DN100 | 4" | round | 55 | 90 | 152 | 249 | |||||||
| DN125 | 5" | round | 86 | 145 | 249 | 389 | |||||||
| DN150 | 6" | round | 137 | 238 | 380 | 608 | |||||||
| DN200 | 8" | round | 230 | 366 | 600 | 875 | |||||||
| DN250 | 10" | round | 354 | 588 | 865 | 1377 | |||||||
| DN300 | 12" | round | 567 | 850 | 1350 | 2515 | |||||||
| DN350 | 14" | round | 839 | 1322 | 2465 | 3383 | |||||||
| DN400 | 16" | round | 1280 | 2385 | 3296 | 4651 |

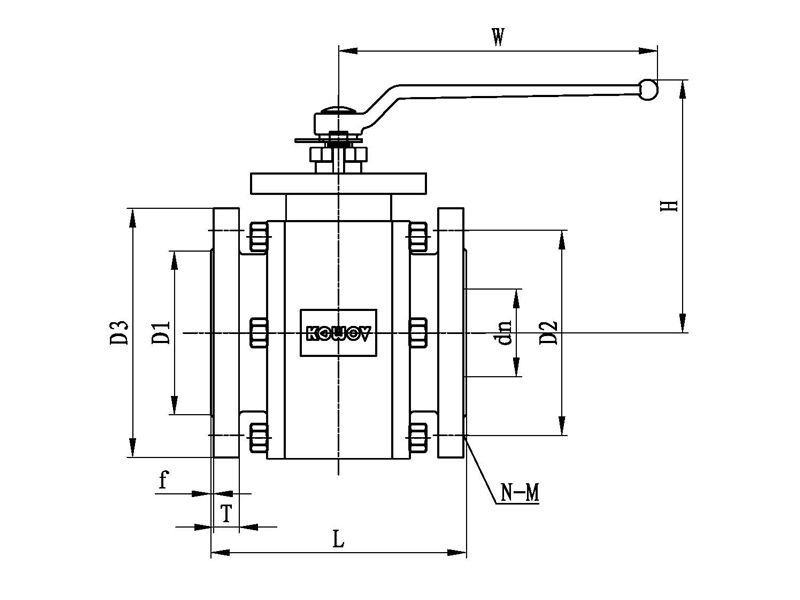

| Nominal diameter | Exterior Size | GB PN10 Flange Dia. | HG PN10 Flange Dia. | Weight (Kg) | ||||||||||||||
| Inch | mm | dn | L | W | H | D1 | D2 | D3 | N-M | T | f | D1 | D2 | D3 | N-M | T | f | |
| 1/2" | 15 | 15 | 108 | 166 | 94 | 45 | 65 | 95 | 4-M12 | 14 | 2 | 45 | 65 | 95 | 4-M12 | 14 | 2 | 4.5 |
| 3/4" | 20 | 15 | 117 | 166 | 94 | 58 | 75 | 105 | 4-M12 | 16 | 2 | 58 | 75 | 105 | 4-M12 | 16 | 2 | 6 |
| 1" | 25 | 20 | 127 | 166 | 97 | 68 | 85 | 115 | 4-M12 | 16 | 2 | 68 | 85 | 115 | 4-M12 | 16 | 2 | 7 |
| 1 1/4" | 32 | 25 | 140 | 166 | 104 | 78 | 100 | 140 | 4-M16 | 16 | 2 | 78 | 100 | 140 | 4-M16 | 16 | 2 | 15 |
| 1 1/2" | 40 | 32 | 165 | 237 | 125 | 88 | 110 | 150 | 4-M16 | 16 | 3 | 88 | 110 | 150 | 4-M16 | 16 | 3 | 23 |
| 2" | 50 | 40 | 178 | 237 | 134 | 102 | 125 | 165 | 4-M16 | 18 | 3 | 102 | 125 | 165 | 4-M16 | 18 | 3 | 32 |
| 2 1/2" | 65 | 50 | 190 | 237 | 145 | 122 | 145 | 185 | 8-M16 | 19 | 3 | 122 | 145 | 185 | 8-M16 | 19 | 3 | 39 |
| 3" | 80 | 65 | 203 | 270 | 169 | 138 | 160 | 200 | 8-M16 | 21 | 3 | 138 | 160 | 200 | 8-M16 | 21 | 3 | 45 |
| 4" | 100 | 80 | 229 | 191 | 158 | 180 | 220 | 8-M16 | 22.3 | 3 | 158 | 180 | 220 | 8-M16 | 22.3 | 3 | 59 | |
| 5" | 125 | 100 | 254 | 407 | 188 | 210 | 250 | 8-M16 | 23 | 3 | 188 | 210 | 250 | 8-M16 | 23 | 3 | 69.5 | |
| 6" | 150 | 100 | 267 | 407 | 212 | 240 | 285 | 8-M20 | 26 | 3 | 212 | 240 | 285 | 8-M20 | 26 | 3 | 90 | |
| 8" | 200 | 150 | 419 292 | 520 248 | 268 | 295 | 340 360 | 8-φ22 8-M20 | 22 33 | 2 3 | 268 262 | 295 290 | 340 360 | 8-φ22 8-M20 | 22 33 | 2 3 | 200 | |
| 10" | 250 | 200 | 457 | 580 | 320 | 350 | 395 | 12-M20 | 24 | 2 | 320 | 350 | 395 | 12-M20 | 24 | 2 | 290 | |
| Item | Y-ZrO Y-TZP | Mg-ZrO₂ M-PSZ | 90 Al₂O₃ | 95 Al₂O₃ | 99 Al₂O₃ | Si₃N₄ | SiC | Common ceramics | Carbide alloy | 45# Steel |
|
Density g/cm³ |
6.0~6.05 | 5.72~5.74 | 3.45~3.55 | 3.6~3.75 | 3.9~3.95 | 3.2~3.33 | 3.15~3.25 | 3.0~3.5 | 14~18 | 7.8 |
|
Hardness HRA/C |
87 | 85 | 90 | 90 | 92 | 92 | 94 | 50~60 | 70 | 36 |
|
Flexural Strength MPa |
1150 | 900 | 350 | 370 | 450 | 1200 | 470 | 20~50 | 2000 | 804 |
|
Fracture Toughness (KIC) MPa√m |
10~12 | 13~15 | 3.4 | 3.6 | 4.5 | 7 | 4 | -- | 20 | 101 |
|
Compressive Strength MPa |
2000 | 1800 | 1700 | 2000 | 2200 | 2800 | -- | -- | 4000 | 2000 |
|
Thermal Shock Resistance °C |
87 | 110 | -- | -- | 50 | 200 | 75 | -- | 500 | 500 |
|
Thermal Expansion Coefficient ×10⁻⁶/°C |
9.6 | 10 | 7.6 | 7.8 | 8.3 | 3.4 | 4 | -- | 7 | 12 |
|
Modulus of Elasticity GPa |
200 | 200 | 310 | 330 | 350 | 300 | 400 | -- | 600 | -- |
|
Crushing Load KN (Φ6mm) |
15 | 10 | 3.5 | 3.6 | 4 | 18 | 3.5 | -- | -- | -- |
|
Using Temperature °C |
<160 | <1000 | <1200 | <1250 | <1500 | <1500 | <1500 | -- | -- | <560 |
|
Water Absorption |
0 | 0 | 0.02% | 0.01% | 0.00% | 0 | 0.50% | 5~10% | -- | -- |
|
Corrosion Prevention |
Good | Good | Good | Good | Good | Good | Good | Flooey | Good | Flooey |
*Data sources: test results or issued original documents.
ANTI-CORROSIVE PERFORMANCE REFERENCE TABLE
| Media | Temperature | ZrO₂ | 99.9% Al₂O₃ | SiC | Si₃N₄ | Graphite | PTFE | Fluororubber | SS304 | SS316 | HC |
| 20% HCL | 60°C | A | A | A | B | A | A | A | C | C | B |
| 20% HCL | 95°C | A | A | A | C | A | A | A | -- | -- | C |
| 90% H₂SO₄ | 60°C | A | A | A | A | A | A | A | C | C | B |
| 90% H₂SO₄ | 95°C | A | A | A | B | A | A | A | C | C | C |
| 60% H₃PO₄ | 60°C | A | A | A | C | A | A | A | C | C | A |
| 60% H₃PO₄ | 95°C | A | A | A | C | A | A | A | C | C | A |
| 10% HF | 60°C | C | B | A | A | A | A | A | C | C | B |
| 46% HF | 95°C | C | C | A | C | A | A | A | -- | -- | C |
| 60% HNO₃ | 60°C | A | A | A | C | B | A | A | A | A | C |
| 60% HNO₃ | 95°C | A | B | A | C | B | A | A | B | B | C |
| 30% NaOH | 60°C | A | B | A | B | A | A | A | A | A | A |
| 30% NaOH | 95°C | B | B | A | C | A | A | A | A | B | A |
A ≤ 0.1mmg/cm²/day: Can be ignored or has no corrosion, recommended for use.
B = 0.1~0.3mmg/cm²/day: Slight or very minor corrosion, use with caution.
C ≥ 0.3mmg/cm²/day: Significant corrosion, not recommended for use.
-- : Intense corrosion, to the extent that measurement is not possible.
Flow Characteristic Sheet of Ceramic Ball Valve
| Core Specifications | O-type ball core | V60° ball core | V45° ball core | V30° ball core |
| DN15 | 10 | 7 | 4 | 3 |
| DN20 | 18.2 | 12 | 8 | 5 |
| DN25 | 29 | 18 | 12 | 8 |
| DN32 | 47 | 30 | 20 | 13 |
| DN40 | 73 | 46 | 31 | 21 |
| DN50 | 114 | 72 | 48 | 32 |
| DN65 | 181 | 115 | 76 | 51 |
| DN80 | 292 | 185 | 123 | 82 |
| DN100 | 456 | 289 | 192 | 128 |
| DN125 | 712 | 452 | 300 | 201 |
| DN150 | 1025 | 650 | 432 | 289 |
| DN200 | 1822 | 1156 | 769 | 514 |
Applications
Titanium Dioxide (TiO₂) Industry
Acidic slurries in the sulfate process for TiO₂ production.
TiCl₄ slurry and sludge in the chloride process.
Chlorine with biochemical substances and TiO₂ powder.
Salt Chemical Industry
Salt sludge, caustic mud, carbide residue slurry, waste sludge, sand-removed ammonia wastewater.
Petrochemical Industry
Molecular sieve pipelines in catalyst production units.
Fluidized catalytic cracking units (Al₂O₃ powders).
Mining & Metallurgy
Transport and blending of copper concentrates; safety valves for copper transport bins.
Dye Manufacturing
TiO₂-containing solutions at specified concentrations, sulfuric acid solutions, and diluted acid solutions.
Pulp & Paper Industry
Kaolin, feldspar, talc, quartz, MgO, CaCO₃, and other paper fillers.
Bleaching agents, NaOH, and filtrates.
Request an application review
Send the medium, temperature, pressure, nominal size, solids, actuation and current failure mode. The engineering team will review the duty before recommending a valve.
